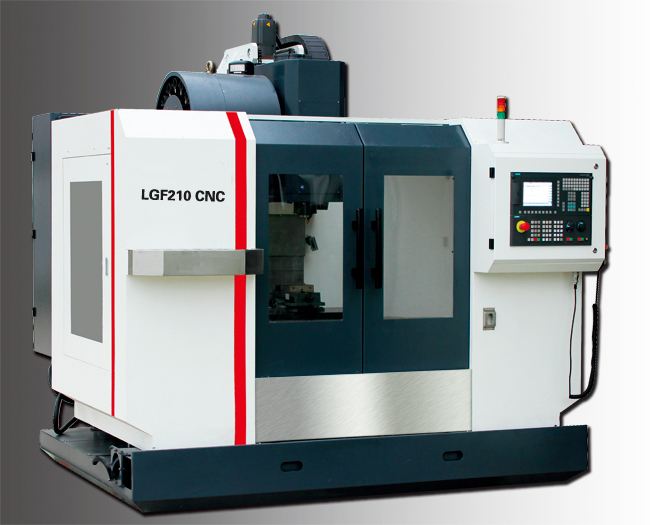

TYK210/LGF300 立式加工中心
數控系統：法那克、西門子、廣數、華中等可選。 產品型號 Model LGF210 LGF300 產品編號 Code No L1121000 L1130000 機床電器 Electric Supply 總功率 Total connection 18KW 21KW 主電機功率 Driving motor power 9KW 9KW 冷卻泵功率 Coolant pump power 370W 370W 電機扭矩（X軸、Y軸、Z軸） Torque motor(X,Y,Z axis) 8/8/11Nm 16/16/16Nm 主軸 Spindle 主軸錐度 Spindle taper BT40 BT40 主軸轉速 Spindle Speed 10-8000RPM 10-8000RPM 主軸中心到立柱表面距離 Distance spindle-column 561mm 570mm *大面銑直徑 Face milling dimension (Max) ?85mm ?85mm *大立銑直徑 End milling dimension (Max) ?42mm ?42mm 刀庫 Magazine 刀庫容量 Capacity 24 tools 24 tools *大刀具尺寸(滿刀/鄰空刀） Tool diameter (Max) ? 78mm(with adjacent tool) ?120mm ? 78mm(with adjacent tool) ?120mm *大刀具重量 Tool weight (Max) 8KG 8KG 換刀時間 Time-tool changing 3 Sec...
分類：
描述
數控系統：法那克、西門子、廣數、華中等可選。
| 產品型號 | Model | LGF210 | LGF300 | ||
| 產品編號 | Code No | L1121000 | L1130000 | ||
| 機床電器 | Electric Supply | ||||
| 總功率 | Total connection | 18KW | 21KW | ||
| 主電機功率 | Driving motor power | 9KW | 9KW | ||
| 冷卻泵功率 | Coolant pump power | 370W | 370W | ||
| 電機扭矩（X軸、Y軸、Z軸） | Torque motor(X,Y,Z axis) | 8/8/11Nm | 16/16/16Nm | ||
| 主軸 | Spindle | ||||
| 主軸錐度 | Spindle taper | BT40 | BT40 | ||
| 主軸轉速 | Spindle Speed | 10-8000RPM | 10-8000RPM | ||
| 主軸中心到立柱表面距離 | Distance spindle-column | 561mm | 570mm | ||
| *大面銑直徑 | Face milling dimension (Max) | ?85mm | ?85mm | ||
| *大立銑直徑 | End milling dimension (Max) | ?42mm | ?42mm | ||
| 刀庫 | Magazine | ||||
| 刀庫容量 | Capacity | 24 tools | 24 tools | ||
| *大刀具尺寸(滿刀/鄰空刀） | Tool diameter (Max) |
? 78mm(with adjacent tool) ?120mm |
? 78mm(with adjacent tool) ?120mm |
||
| *大刀具重量 | Tool weight (Max) | 8KG | 8KG | ||
| 換刀時間 | Time-tool changing | 3 Seconds | 2.5 Seconds | ||
| 工作臺 | Table | ||||
| 工作臺尺寸（長×寬） | Table length×width | 1050×500mm | 1000×500mm | ||
| 主軸端到工作臺面距離 | Distence spindle-table | 110-660mm | 120-720mm | ||
| T型槽(槽寬/間距/數量) | T-slot(size/distance/number) | 18mm/90mm/5 | 18mm/84mm/5 | ||
| *大承載重量 | Load(Max) | 450KG | 800KG | ||
| 行程 | Travel | ||||
| X軸 | X axis | 800mm | 900mm | ||
| Y軸 | Y axis | 500mm | 550mm | ||
| Z軸 | Z axis | 550mm | 600mm | ||
| 快移速度（X軸、Y軸、Z軸） | Rapid feed(X,Y,Z axis) | 24m/min | 24m/min | ||
| 精度 | Accuracy | ||||
| 定位精度 | Positioning accuracy | ±0.01mm | ±0.01mm | ||
| 重復定位精度 | Repeat positioning accuracy | ±0.005mm | ±0.005mm | ||
| 尺寸 | Dimensions | ||||
| 外形尺寸(L×W×H) | Overall dimension(L×W×H) | 2350×2120×2641mm | 2850×2450×2645mm | ||
| 包裝尺寸(L×W×H) | Packing size(L×W×H) | 2750×2250×2525mm | 3150×2600×2850mm | ||
| 凈重/毛重 | Net weight/Gross weight | 5000/5500KG | 5200/6000KG | ||
| 水箱容積 | Tank capacity | 250L | 250L | ||
