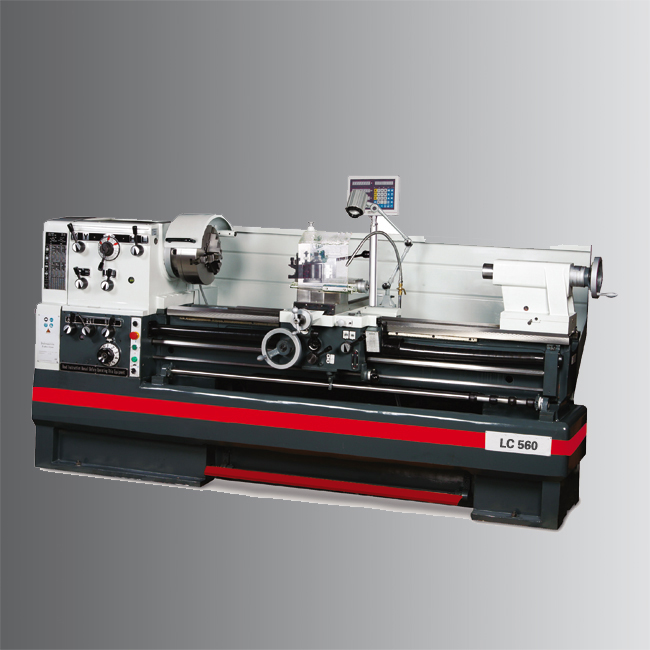

TYK410/TYK460/TYK510/TYK560型 車床
型號 Model TYK 410/TYK 460 TYK 510/TYK 560 產品編號 Code No. P4241300/P4246400 P4251400/P4256400 加工范圍 CAPACITY 床身上*大回轉直徑 Swing over bed ø410mm/ø460mm ø510mm/ø560mm 拖板上*大回轉直徑 Swing over cross slide ø220mm/ø270mm ø305mm/ø355mm 馬鞍板上*大回轉直徑 Turning ø without bed bridge ø640mm/ø690mm ø735mm/ø785mm 花盤前馬鞍有效長度 Length of gap 165mm 170mm 兩頂尖中心距 Admits between 1000mm/1500mm 1500mm/1500mm 主軸中心高 Center height 205mm/230mm 255mm/280mm 床身寬度 Width of bed 300mm 350mm 主軸 HEADSTOCK 主軸端部 Spindle nose D1-6 D1-8 主軸通孔直徑 Spindle bore ø58mm/ø80mm(For optional) ø80mm//ø105mm(For optional) 主軸內孔錐度 Spindle taper MT6 MT7 主軸轉速范圍 Range of spindle speed 25-2...
分類：
描述
| 型號 | Model | TYK 410/TYK 460 | TYK 510/TYK 560 |
| 產品編號 | Code No. | P4241300/P4246400 | P4251400/P4256400 |
| 加工范圍 | CAPACITY | ||
| 床身上*大回轉直徑 | Swing over bed | ø410mm/ø460mm | ø510mm/ø560mm |
| 拖板上*大回轉直徑 | Swing over cross slide | ø220mm/ø270mm | ø305mm/ø355mm |
| 馬鞍板上*大回轉直徑 | Turning ø without bed bridge | ø640mm/ø690mm | ø735mm/ø785mm |
| 花盤前馬鞍有效長度 | Length of gap | 165mm | 170mm |
| 兩頂尖中心距 | Admits between | 1000mm/1500mm | 1500mm/1500mm |
| 主軸中心高 | Center height | 205mm/230mm | 255mm/280mm |
| 床身寬度 | Width of bed | 300mm | 350mm |
| 主軸 | HEADSTOCK | ||
| 主軸端部 | Spindle nose | D1-6 | D1-8 |
| 主軸通孔直徑 | Spindle bore | ø58mm/ø80mm(For optional) | ø80mm//ø105mm(For optional) |
| 主軸內孔錐度 | Spindle taper | MT6 | MT7 |
| 主軸轉速范圍 | Range of spindle speed | 25-2000rpm | 25-1600rpm |
| 進給及螺紋 | FEEDS AND THREADS | ||
| 小拖板行程 | Top slide travel | 128mm | 130mm |
| 中拖板行程 | Cross slide travel | 285mm | 316mm |
| 車刀刀桿*大截面 | Max.Section of tool | 25x25mm | 25x25mm |
| 公制螺紋范圍 | Threads metric pitches | 0.1-14mm | 0.2-14mm |
| 英制螺紋范圍 | Threads imperial pitches | 2-112TPI | 2-112TPI |
| 尾座 | TAILSTOCK | ||
| 尾座套筒直徑 | Quill diameter | ø60mm(2-5/16") | ø75mm |
| 尾座套筒行程 | Quill travel | 120mm(4-3/4") | 180mm |
| 尾座套筒內孔錐度 | Quill taper | MT4 | MT5 |
| 電機 | MOTOR | ||
| 主電機功率 | Main motor power | 4 / 5.5KW | 7.5KW |
| 冷卻泵功率 | Coolant pump power | 0.125KW | 0.1KW |
| 外形及重量 | DIMENSION AND WEIGHT | ||
| 包裝箱尺寸（長x寬x高） | Packing size(LxWxH) | 2850x1120x1700mm | 2960x1130x1820mm |
| 凈重/毛重 | N.W./G.W. | 1670/1980kg 2020/2385kg | 2335/2700kg 2370/2740kg |
