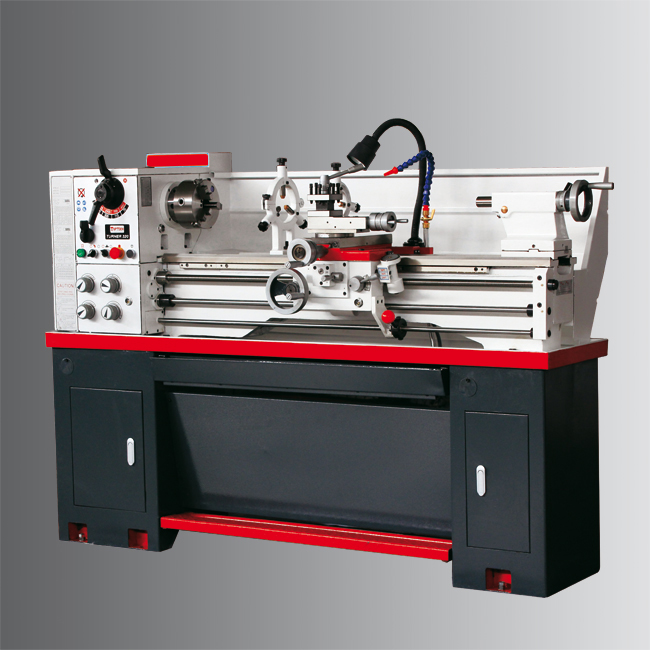

TYK320/TYK360L型 車床
型號 Model TYK320 TYK 360L 產品編號 Code No. P4232300 P4237300 加工范圍 Capacity 床身上*大回轉直徑 Swing over bed ø330mm ø360mm 拖板上*大回轉直徑 Swing over cross slide ø190mm ø210mm 馬鞍槽內*大回轉直徑 Swing in gap diameter ø475mm ø490mm 花盤前馬鞍有效長度 Length of gap 115mm 115mm 兩頂尖中心距 Admits between 1000mm 1000mm 主軸中心高 Center height 165mm 165mm 床身寬度 Width of bed 185mm 185mm 主軸 HEADSTOCK 主軸端部 Spindle nose D1-4 D1-4 主軸通孔直徑 Spindle bore ø38mm ø38mm 主軸內孔錐度 Taper of spindle bore MT5 MT5 主軸轉速范圍 Range of spindle speed 70-2000rpm 70-2000rpm 進給及螺紋 FEEDS AND THREADS 小拖板*大行程 Top slide travel 95mm 95mm 中拖板*大行程 Cross slide travel 180mm 180mm 大絲桿規格 Lead screw thread 4mm 4mm 車刀刀桿*大截面 Max.S...
分類：
描述
| 型號 | Model | TYK320 | TYK 360L |
| 產品編號 | Code No. | P4232300 | P4237300 |
| 加工范圍 | Capacity | ||
| 床身上*大回轉直徑 | Swing over bed | ø330mm | ø360mm |
| 拖板上*大回轉直徑 | Swing over cross slide | ø190mm | ø210mm |
| 馬鞍槽內*大回轉直徑 | Swing in gap diameter | ø475mm | ø490mm |
| 花盤前馬鞍有效長度 | Length of gap | 115mm | 115mm |
| 兩頂尖中心距 | Admits between | 1000mm | 1000mm |
| 主軸中心高 | Center height | 165mm | 165mm |
| 床身寬度 | Width of bed | 185mm | 185mm |
| 主軸 | HEADSTOCK | ||
| 主軸端部 | Spindle nose | D1-4 | D1-4 |
| 主軸通孔直徑 | Spindle bore | ø38mm | ø38mm |
| 主軸內孔錐度 | Taper of spindle bore | MT5 | MT5 |
| 主軸轉速范圍 | Range of spindle speed | 70-2000rpm | 70-2000rpm |
| 進給及螺紋 | FEEDS AND THREADS | ||
| 小拖板*大行程 | Top slide travel | 95mm | 95mm |
| 中拖板*大行程 | Cross slide travel | 180mm | 180mm |
| 大絲桿規格 | Lead screw thread | 4mm | 4mm |
| 車刀刀桿*大截面 | Max.Section of tool | 16x16mm | 16x16mm |
| 公制螺紋范圍 | Threads metric pitches | 0.25-11mm | 0.4-7mm |
| 英制螺紋范圍 | Threads imperial pitches | 4-112T.P.I. | 8-112T.P.I |
| 尾座 | TAILSTOCK | ||
| 尾座套筒直徑 | Quill diameter | ø32mm | ø32mm |
| 尾座套筒行程 | Quill travel | 100mm | 100mm |
| 尾座套筒內孔錐度 | Quill taper | MT3 | MT3 |
| 電機 | MOTOR | ||
| 主電機功率 | Main motor power | 1.5KW | 1.5KW |
| 冷卻泵功率 | Coolant pump power | 40W | 40W |
| 外形尺寸及重量 | DIMENSION AND WEIGHT | ||
| 外形尺寸（長x寬x高） | Overall dimension(LxWxH) | 1820x740x1240mm | 1870x740x124mm |
| 包裝箱尺寸（長x寬x高） | Packing size(LxWxH) | 1930x760x1450mm | 1970x760x1450mm |
| 凈重/毛重 | NW/GW | 520/640kg | 520/640kg |
