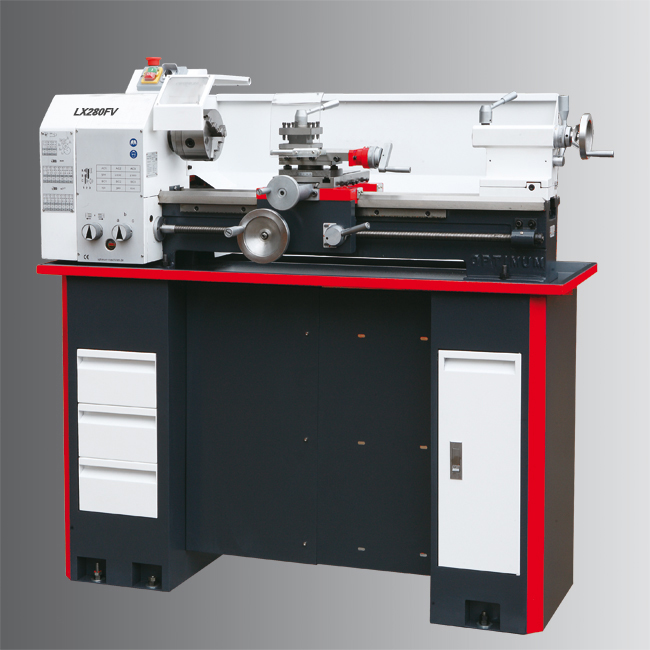

TYK280F/TYK280FV型 車床
型號 Model TYK 280F TYK 280FV 產品編號 Code No. PX4128102(230V) PX4428100 產品編號 Code No. 4128103(400V) 加工范圍 Capacity 床身上*大回轉直徑 Swing over bed ø280mm ø280mm 拖板上*大回轉直徑 Swing over cross slide ø170mm ø170mm 兩頂尖中心距 Admits between 700mm 700mm 主軸中心高 Center height 140mm 140mm 床身寬度 Width of bed 180mm 180mm 主軸 HEADSTOCK 主軸通孔直徑 Spindle bore ø26mm ø26mm 主軸內孔錐度 Taper of spindle bore MT4 MT4 主軸轉速范圍 Range of spindle speed 150-2000rpm 50-2200rpm 進給及螺紋 FEEDS AND THREADS 小拖板*大行程 Top slide travel 60mm 60mm 中拖板*大行程 Cross slide travel 150mm 150mm 車刀刀桿*大截面 Max.Section of tool 14x14mm 14x14mm 公制螺紋范圍 Threads metric pitches 0.2-3.5mm 0.2-3.5mm 英制螺紋范圍 Threads imperial pitches 8-56TPI 8-56...
分類：
描述
| 型號 | Model | TYK 280F | TYK 280FV |
| 產品編號 | Code No. | PX4128102(230V) | PX4428100 |
| 產品編號 | Code No. | 4128103(400V) | |
| 加工范圍 | Capacity | ||
| 床身上*大回轉直徑 | Swing over bed | ø280mm | ø280mm |
| 拖板上*大回轉直徑 | Swing over cross slide | ø170mm | ø170mm |
| 兩頂尖中心距 | Admits between | 700mm | 700mm |
| 主軸中心高 | Center height | 140mm | 140mm |
| 床身寬度 | Width of bed | 180mm | 180mm |
| 主軸 | HEADSTOCK | ||
| 主軸通孔直徑 | Spindle bore | ø26mm | ø26mm |
| 主軸內孔錐度 | Taper of spindle bore | MT4 | MT4 |
| 主軸轉速范圍 | Range of spindle speed | 150-2000rpm | 50-2200rpm |
| 進給及螺紋 | FEEDS AND THREADS | ||
| 小拖板*大行程 | Top slide travel | 60mm | 60mm |
| 中拖板*大行程 | Cross slide travel | 150mm | 150mm |
| 車刀刀桿*大截面 | Max.Section of tool | 14x14mm | 14x14mm |
| 公制螺紋范圍 | Threads metric pitches | 0.2-3.5mm | 0.2-3.5mm |
| 英制螺紋范圍 | Threads imperial pitches | 8-56TPI | 8-56TPI |
| 尾座 | TAILSTOCK | ||
| 尾座套筒直徑 | Quill diameter | ø30mm | ø30mm |
| 尾座套筒行程 | Quill travel | 105mm | 105mm |
| 尾座套筒內孔錐度 | Quill taper | MT2 | MT2 |
| 橫向調整 | Cross adjustment | ±5mm | ±5mm |
| 電機 | MOTOR | ||
| 主電機功率 | Main motor power | 850W DC | 1.1KW DC |
| 外形尺寸及重量 | DIMENSION AND WEIGHT | ||
| 外形尺寸（長x寬x高） | Overall dimension(LxWxH) | 1220x660x560mm | 1220x660x560mm |
| 包裝箱尺寸（長x寬x高） | Packing size(LxWxH) | 1320x700x680mm | 1320x700x680mm |
| 凈重/毛重 | Net weight/Gross weight | 196/225kg | 196/225kg |
