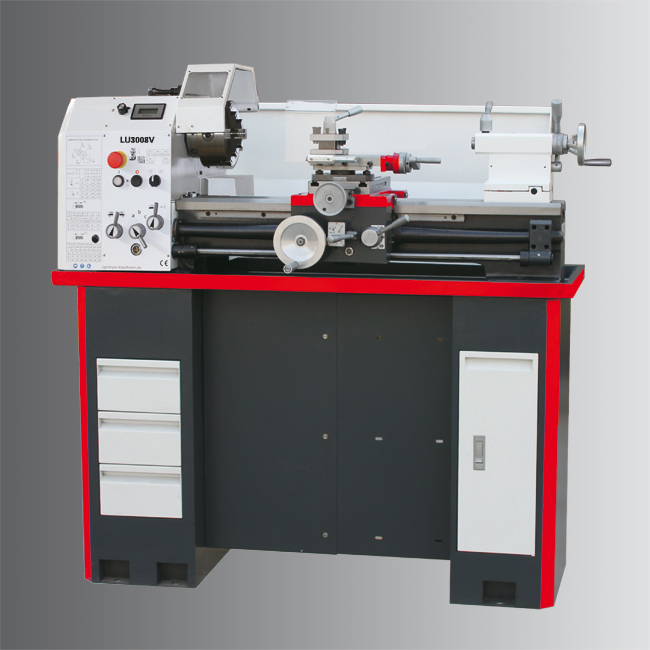

TYK3008V型 車床
型號 Model TYK3008V 貨號 Item No. P4430200 加工范圍 Capacity 床身上*大回轉直徑 Turning ø over lathe bed ø310mm 拖板上*大回轉直徑 Turning ø over cross slide ø190mm 兩頂尖距離 Admits between 750mm 主軸中心高 Center height 158mm 床身寬度 Width of bed 180mm 主軸 Headstock 主軸通孔直徑 Spindle bore ø38mm 主軸內孔錐度 Spindle taper MT5 主軸轉速范圍 Spindle speed 30-300/70-700/140-1400/200-2000/300-3000 rpm 進給及螺紋 Feed and thread 小拖板*大行程 Top slide travel 65mm 中拖板*大行程 Cross slide travel 150mm 公制螺紋范圍 Threads metric pitches 0.2-3.5mm/U 英制螺紋范圍 Threads inch pitches 56-8 threads/inch 尾架 Tailstock 尾架套筒直徑 Quill diameter ø38mm 尾架套筒行程 Quill travel 70mm 尾架套筒內孔錐度 Quill taper MT3 電機 Motor 電壓 Electric tension 230V 電機功率 Motor power 1.5KW 尺寸及重量...
分類：
描述
| 型號 | Model | TYK3008V |
| 貨號 | Item No. | P4430200 |
| 加工范圍 | Capacity | |
| 床身上*大回轉直徑 | Turning ø over lathe bed | ø310mm |
| 拖板上*大回轉直徑 | Turning ø over cross slide | ø190mm |
| 兩頂尖距離 | Admits between | 750mm |
| 主軸中心高 | Center height | 158mm |
| 床身寬度 | Width of bed | 180mm |
| 主軸 | Headstock | |
| 主軸通孔直徑 | Spindle bore | ø38mm |
| 主軸內孔錐度 | Spindle taper | MT5 |
| 主軸轉速范圍 | Spindle speed | 30-300/70-700/140-1400/200-2000/300-3000 rpm |
| 進給及螺紋 | Feed and thread | |
| 小拖板*大行程 | Top slide travel | 65mm |
| 中拖板*大行程 | Cross slide travel | 150mm |
| 公制螺紋范圍 | Threads metric pitches | 0.2-3.5mm/U |
| 英制螺紋范圍 | Threads inch pitches | 56-8 threads/inch |
| 尾架 | Tailstock | |
| 尾架套筒直徑 | Quill diameter | ø38mm |
| 尾架套筒行程 | Quill travel | 70mm |
| 尾架套筒內孔錐度 | Quill taper | MT3 |
| 電機 | Motor | |
| 電壓 | Electric tension | 230V |
| 電機功率 | Motor power | 1.5KW |
| 尺寸及重量 | Dimension and weight | |
| 外形尺寸 | Overall dimension | 1525×705×583mm |
| 包裝尺寸 | Packing size | 1500×720×690mm |
| 毛重 | Gross weight | 260kg |
